Organoids grown from a mouse’s colon will be used to screen drugs for colorectal cancer. These structures appear as a dot to the naked eye, and need specialised microscopes for analysis. Scale bar is 50 μm.
Organoids grown from a mouse’s colon will be used to screen drugs for colorectal cancer. These structures appear as a dot to the naked eye, and need specialised microscopes for analysis. Scale bar is 50 μm.

How miniature human organs are giving hope to cancer patients

SHARE YOUR SCIENCE: Organoids. The good, the bad and the beautiful.

One of the most fascinating aspects of biology is developmental biology, and that means the development of an organism, from an embryo until adulthood.

For some organisms, this is easily observed under the microscope, such as the elegant zebrafish embryo, which starts twitching its tail at 24 hours of age.

For other organisms, development is hidden since it happens within the mother, as is the case for us humans.

‘Why is development relevant to cancer?’ I hear you ask.

Well, it turns out cancer is development gone wild.

And this is why today I want to introduce you to a happy middle-ground that allows the visualisation of development of human organs.

Enter: the organoid.

Growing human mini-organs in no time

The term was coined in the Netherlands about 10 years ago by Professor Hans Clevers. His work on organoids has turned him into an international superstar, and I couldn’t help but feel a bit excited when I spotted him in the lobby of the Hubrecht Institute a couple of days ago. The Hubrecht Institute is in Utrecht, the Netherlands, and it is a wonderful place that focuses on developmental biology questions.

Organoids are miniature organs that recapitulate the functions of the organ they come from. They can be grown from a small amount of material, a biopsy, and can be expanded forever.

The list of organoids that have been grown is long: small intestine, colon, gastric, mammary gland, pancreas, prostate, ovary, salivary gland, inner ear, eye, nasal, lung, liver… even the brain!

This means that if you manage to collaborate with a clinician (and get the ethics approval), you could potentially be growing human mini-organs of the organ of your choice in no time at all. For those of you who don’t have access to human biopsies, you can also grow them from dissected mice.

A single stem cell can grow a whole organ

This is of course not the first time human material is grown in the lab.

The first human cell line that could be grown in the laboratory was called HeLa after the young African American woman Henrietta Lacks who died from cervical cancer. It was established in the 1950s and was instrumental for many scientific discoveries, including a vaccine against polio. This cell line grew exceptionally well, and could be grown on plastic. Plastic is obviously not particularly similar to the complex three dimensional (3D) environment a cell is usually surrounded by when it is in the body. Attempts were made to grow biological material in 3D.

A precursor to organoids dates back to 1906, when the hanging drop method was developed. This method is in principle incredibly simple. Cells are placed in small drops on a plastic surface and then inverted so that the drop hangs. The method was initially used to study bacteria and allows cells to grow without spreading onto a dish, as well as avoiding the drop to evaporate. From microbiology research, the hanging drop method was then applied to neural tissue cultures, and led to the discovery of nerve growth factor (Nobel Prize in 1986).

This method is still being used to study stem cells. I guess the revolution with organoids is that it is human material, that can be eternally expanded, in 3D. This is possible because of decades of research, including knowledge about interactions between cells and their extracellular environment, knowledge on growth factors that provide queues to grow, divide or differentiate, on so-called apicobasal polarity - how cells can tell which side is up, but perhaps most importantly the identification of the stem cells for a particular organ.

Organoid-superstar Hans Clevers, mentioned earlier, showed that the protein Lgr5 is the stem cell marker for intestinal cells, and that a single stem cell could give rise to the whole organoid, along with all of the cell types the intestine is made up of. And the fact that they are grown in three dimensions allows the cells to organize themselves in a similar way to what they would be doing in the body, in vivo as we biologists call it.

Beautiful science: Small intestinal organoid from mouse. Scale bar, 20µm.
Beautiful science: Small intestinal organoid from mouse. Scale bar, 20µm.

Benefits of growing human material

Now there are different reasons for doing research. I do research because I am interested in human health. Others do research because they are interested in animal health. So, depending on the biological question you are trying to address, you need to carefully consider what the appropriate model for your research is.

Some diseases for example are not well modelled in mice.

Colorectal cancer, cancer of the colon and the rectum, occurs in another part of the digestive system in mice (the small intestine), even though the same genes that are mutated in humans are genetically mutated in mice.

Cystic fibrosis, a genetic disease that is characterized by the accumulation of mucus in respiratory and digestive organs, is also poorly modelled in mice. Mice with mutated or deleted Cftr gene (the gene that is mutated in cystic fibrosis patients), do not get respiratory problems, only intestinal problems.

So if you want to work on cystic fibrosis, you are going to want to work with human material. Obviously, experiments in humans are not possible, so growing human material, like organoids, provides huge advantages in disease modeling.

The Good: Regenerative stem cells

Organoids have a huge potential for applications linked to human health. They can be used for regenerative medicine, since you can expand human material from that small biopsy. And the amplification isn’t a small victory: it means you can biobank them, freeze them, thaw them, and since they can be expanded indefinitely, you won’t run out of material like you would with a regular biobanking system.

Why can they be expanded? The reason is stem cells.

Stem cells are incredible, and given the right cocktail of growth signals, can give rise to all the cell types in a given organ. We aren’t talking of embryonic stem cells here, but rather adult stem cells, those that can be found in all of your organs. They are there so that if your organ gets damaged, the stem cells can help you out and repair the damage.

As you might have heard, our organs are not equal in this regard. Some organs regenerate much more than others, and in general it is true to say that mammals regenerate very little compared to other species.

In contrast to us, zebrafish are able to regenerate most of their tissues and organs – their spinal cord, their heart, their fins, their inner ear structures, retina, kidney, liver and even the brain. Us: we can regenerate the intestine, the blood and the skin.

Having said that, the other organs still have stem cells, that can be turned on if damage occurs. So in practice it means that taking a biopsy of any organ in your body is going to contain some adult stem cells, and they are going to divide and differentiate into a miniature version of the organ. And if that doesn’t work, you can reprogram cells from a patient’s blood into stem cells, which are in this case called induced pluripotent stem cells (iPSCs), and then differentiate them into the organoid of your choice.

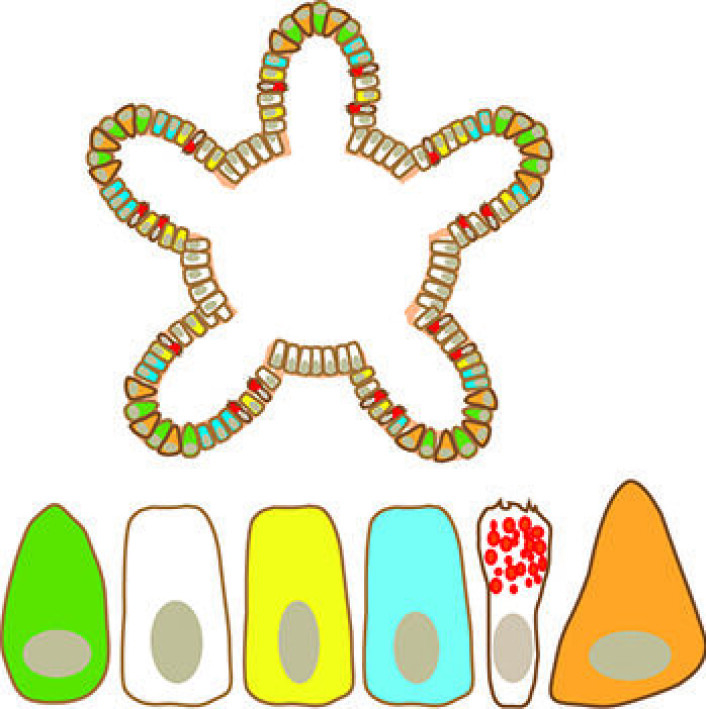

Colon organoids contain stem cells (green), as well as the other cell types the colon is made up of: enterocytes (white), enteroendocrine cells (yellow), trans-amplifying cells (blue), goblet cells (with red granules) and paneth cells (orange).
Colon organoids contain stem cells (green), as well as the other cell types the colon is made up of: enterocytes (white), enteroendocrine cells (yellow), trans-amplifying cells (blue), goblet cells (with red granules) and paneth cells (orange).

The good: cheaper and better drug development

Organoids can also be used for drug development. You’ve probably heard how expensive it is to develop a new drug (about $2 billion), and this is partly due to the fact that the models used for drug development cannot predict toxicity of the drug in humans. Organoids are obviously more laborious to culture than cells grown on plastic, or feeding mice kept in captivity. But wouldn’t pharmaceutical companies ultimately save a lot of hard work and some $ if they used a more appropriate model?

Another exciting implication of this technology is a reduction in animal testing. If we can use organoids to test new drugs, we won’t need mice in the same way.

Cell line xenografts are currently the standard for preclinical research. Xenograft means a transplant from one species to another - in this case human cells would be grafted into immunocompromised mice in order to assess the safety of a drug before starting clinical trials in humans.

Because organoids are very small (ranging from the diameter of a hair to a few millimeters for the case of brain organoids) and grow very fast, hundreds of drugs can be tested at the same time in one little plate in an incubator. Now that’s considerably more efficiently than running an animal house full of thousands of mice. And that’s not even bringing in the mouse-human differences mentioned earlier.

Having said that, clinical applications, while seemingly limitless, have not been happening for most diseases. The problem of course is that some diseases, like cancer, are extremely complex.

The good: The right drug for cystic fibrosis patients

So at the moment, there is only example of using organoids in a clinical setting: cystic fibrosis. One of the reasons it works for cystic fibrosis is that there is only one gene that is mutated here: the ion channel CFTR (in contrast, a tumour has many genetic mutations, making tumour cells more difficult to target appropriately).

Research on cystic fibrosis using organoids is done by a laboratory I am currently visiting. Jeffrey Beekman, a professor at Regenerative Medicine Center Utrecht (same building as the Hubrecht where Clevers works) has developed an assay that can predict whether a drug will work on a patient or not.

His team grows organoids from cystic fibrosis patients – patients who carry a rare CFTR mutation and where the drug of choice is unknown. They place the organoids with the drugs and use a microscope to monitor whether the organoids can swell or not. If the organoids swell, this means CFTR function is restored, and the patient will get a positive effect from using this particular drug (several approved drugs are usually tested in parallel). Then, the insurance company kicks in based on the results done in the lab, and the patient can start taking the medication. If the swelling doesn’t work, then they know there is no point using that particular drug.

Wonderful, isn’t it?

The good: Predicting results of cancer treatments

So why does this give hope for cancer patients?

Recently organoids have attracted a lot of attention because they predict a colorectal cancer patient’s response to chemotherapy. This has of course wonderful consequences for the patient. Since chemotherapy works on some patients (responders) but not on others (non-responders) and has severe side-effects, it means that non-responders can avoid unnecessary treatment.

Another great piece of news: this predictive capability is not restricted to chemotherapy. One study directly compared patient-derived organoids grown from tumours that were treated with different anti-cancer drugs, targeting different pathways that are dysregulated in cancers, and compared how the patients responded to these exact same drugs. There was full overlap. This was for gastrointestinal cancers, so it remains to be seen if this is also the case for other cancers.

But you can see why the future seems bright: a time when organoids can be grown from a patient, screened for the right drug, and the patient goes on to take that drug. This takes personalised medicine to a new level. So while there is no established pipeline using organoids for cancer therapy, it seems like we are getting close.

The Bad

Honestly I struggle to find the bad.

However, I know the limitations of my model. While organoids contain all the cell types of an organ, and a similar architecture to the organ of interest, they lack vascularization, an immune system and a nervous system.

And they depend on matrigel. Matrigel is a gelatinous protein mixture that is composed of extracellular matrix components, mimicking the environment surrounding a tissue. It is made from mouse sarcoma cells (Engelbreth-Holm-Swarm, EHS), and because it is biological material, there are batch variations, which means introducing variation into your experiments.

Other limitations include size variations of organoid cultures. Those of us who have grown organoids know that some are small and some are large, even if they are neighbours in the same drop of matrigel. This may be due to differing numbers of stem cells within a single crypt, but could also be due to the matrigel, or their position within the matrigel drop, which could affect their ability to get nutrients from the overlaying medium.

Companies are developing hydrogels that are matrigel-free, and I’ve been in touch with Prellis Biologics who promise the moon. However, in the published literature, nothing so far has been better or cheaper than matrigel.

The Beautiful

They are beautiful.

Because they are small, we can image them fully (even if sometimes it takes all night) and get high resolution images.

I was lucky enough to get one of my pictures picked up last year by The Scientist. We would not have been able to get as high resolution images after dissecting a mouse gut, embedding it in paraffin, slicing it up and staining it. Usually the type of technique used here is immunohistochemistry, which while informative if there are large differences in protein levels between your samples, does not give you a good overview of intracellular localisation.

In our department, we use confocal microscopy routinely, which is an imaging technique that increases resolution and therefore information by blocking out-of-focus light. In the organoid presented here, I used super-resolution Airyscan microscopy, which gives even more resolution than standard confocal microscopy. Wouldn’t you agree that biology is beautiful, and would you have expected mini colons and mini small intestines to be so exquisitely organized? I am amazed every time.

Right now I am sitting in the same building as the man who started all of this. It’s raining. But I don’t care, because later today I’ll be doing more work on human organoids, in the organoid capital of the world. Here nearly all research groups work on organoids. The questions are different, but the models the same, which means that methodology moves at an incredible pace.

So now you know. Organs are no longer only growing inside an embryo. They can be grown in the lab, and you’ve learned about the good, the bad and the beautiful.

———
